Product family

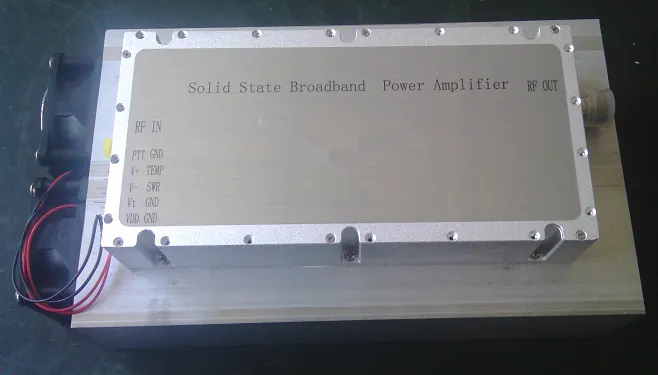

Broadband GaN SSPA
Designed with GaN power transistors, this broadband amplifier series covers P-band through Ka-band and is intended for high-end equipment systems. The company describes applying advanced design techniques to support different functional and performance requirements.
Wakien Tech · Shenzhen, China

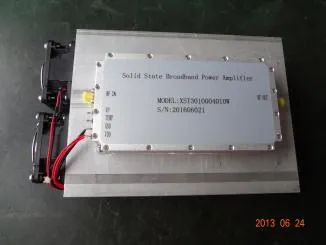

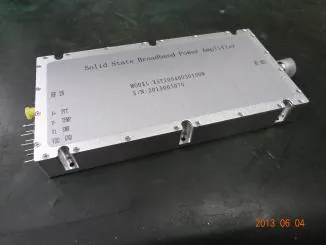

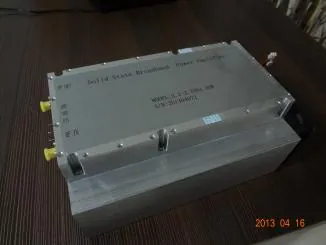

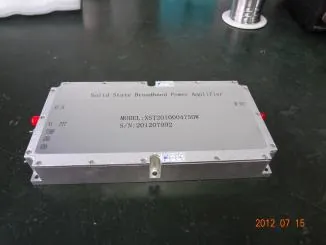

Broadband GaN SSPA
Designed with GaN power transistors, this broadband amplifier series covers P-band through Ka-band and is intended for high-end equipment systems. The company describes applying advanced design techniques to support different functional and performance requirements.
Product introduction
Designed with GaN power transistors, this broadband amplifier series covers P-band through Ka-band and is intended for high-end equipment systems. The company describes applying advanced design techniques to support different functional and performance requirements.
Series information transcribed from the supplied product handbook. Contact us to confirm the current configuration and revision.
Product features
- Wide frequency coverage
- High-power, high-linearity output
- High efficiency and reliability
- Modular design for easier installation and maintenance
- Wide operating temperature range
Series specifications
| Model | Frequency Range (GHz) | Gain (dB) | Gain Flatness (±dB, max) | Noise Figure (dB, max) | Saturated Output Power (dBm, min) | Input/Output VSWR (max) | DC Supply Voltage (V) | Case Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| HQ-PA-W-00180-2 | 0.01-8.0 | 50 | 3.0 | - | 33 | 2.0:1 | 28V | — |
| HQ-PA-W-00235-5 | 0.02-3.5 | 50 | 3.0 | 8.0 | 37 | 2.0:1 | 28V | — |
| HQ-PA-W-00330-8 | 0.03-3.0 | 50 | 3.0 | - | 39 | 2.5:1 | 30V | — |
| HQ-PA-W-0120-20 | 0.1-2.0 | 46 | 2.0 | 10 | 43 | 2.0:1 | 28V | 120*80*23 |
| HQ-PA-W-0130-20 | 0.1-3.0 | 50 | 2.0 | - | 40 | 2.5:1 | 28V | — |
| HQ-PA-W-0160-20 | 0.1-6.0 | 35 | 3.0 | - | 43 | 3.0:1 | 28V | 190*100*25 |
| HQ-PA-W-0220-100 | 0.2-2.0 | 50 | 2.0 | - | 50 | 3.0:1 | 50V | — |
| HQ-PA-W-0520-20 | 0.5-2.0 | 44 | 2.0 | - | 43 | 2.0:1 | 28V | 86*89*21.3 |
| HQ-PA-W-0525-30 | 0.5-2.5 | 50 | 2.0 | - | 44.5 | 2.0:1 | 50V | — |
| HQ-PA-W-0525-50 | 0.5-2.5 | 50 | 2.0 | - | 47 | 2.0:1 | 50V | — |
| HQ-PA-W-0525-100 | 0.5-2.5 | 50 | 2.0 | - | 50 | 2.0:1 | 50V | — |
| HQ-PA-W-0560-100 | 0.5-6.0 | 50 | 3.0 | - | 45 | 2.0:1 | 50V | — |
| HQ-PA-W-0520-4 | 0.5-20 | 50 | 2.0 | - | 36 | 2.0:1 | 28V | — |
| HQ-PA-LS-1040-6W | 1.0-4.0 | 38 | 2.5 | 10 | 38 | 2.5:1 | 28V | 150*120*25 |
| HQ-PA—W-1080-10 | 1.0-8.0 | 50 | 2.5 | - | 40 | 2.5:1 | 28V | — |
| HQ-PA-S-1723-200 | 1.7-2.3 | 50 | 2.5 | - | 53 | 2.5:1 | 28V | — |
| HQ-PA-S-0240-40 | 2.0-4.0 | 48 | 2.5 | 10 | 46 | 2.0:1 | 28V | 136*89*21.3 |
| HQ-PA-SC-2060-47 | 2.0-6.0 | 50 | 3.5 | 8.0 | 47 | 2.0:1 | 50V | — |
| HQ-PA-W-2018-10 | 2.0-18.0 | 50 | 4.0 | - | 40 | 2.0:1 | 28V | — |
| HQ-PA-S-2740-60 | 2.7-4.0 | 35 | 2.0 | 8.0 | 48 | 2.0:1 | 28V | — |
| Model | Frequency Range (GHz) | Gain (dB) | Gain Flatness (±dB, max) | Noise Figure (dB, max) | Output Power (dBm, min) | Input/Output VSWR (max) | DC Supply Voltage (V) | Case Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| HQ-PA-S-2740-100 | 2.7-4.0 | 40 | 2.5 | 8.0 | 50 | 2.0:1 | 28V | — |
| HQ-PA-C-5590-20 | 5.5-9.0 | 45 | 5.0 | 8.0 | 43 | 2.0:1 | 28V | — |
| HQ-PA-C-5785-20 | 5.7-8.5 | 35 | 5.0 | 8.0 | 43 | 2.0:1 | 28V | — |
| HQ-PA-CX-0612-30 | 6.0-12.0 | 40 | 3.0 | - | 30.0 | 2.0:1 | 28V | — |
| HQ-PA-CXKu-0618-40 | 6.0-18.0 | 40 | 5.0 | - | 46.0 | 2.0:1 | 28V | — |
| HQ-PA-X-7785-140 | 7.7-8.5 | 55 | 1.25 | - | 51.5 | 2.0:1 | 28V | — |
| HQ-PA-X-7711-50 | 7.8-11.0 | 50 | 2.0 | 8.0 | 47 | 2.0:1 | 28V | — |
| HQ-PA-X-85105-30 | 8.5-10.5 | 50 | 2.5 | 8.0 | 45 | 2.0:1 | 28V | — |
| HQ-PA-X-99107-15 | 9.9-10.7 | 46 | 1.5 | 8.0 | 50 | 2.0:1 | 28V | — |
| HQ-PA-Ku-13751450-60 | 13.75-14.5 | 45 | 1.0 | - | 48 | 2.0:1 | 28V | — |
| HQ-PA-Ku-140145-40 | 14.0-14.5 | 40 | 0.75 | - | 46 | 2.0:1 | 28V | — |
| HQ-PA-Ku-1416-30 | 14.0-16.0 | 45 | 2.0 | 8.0 | 45 | 2.0:1 | 28V | — |
| HQ-PA-Ku-1418-20 | 14.0-18.0 | 45 | 2.5 | - | 43 | 2.0:1 | 28V | — |
| HQ-PA-Ka-2931-10 | 29.0-31.0 | 40 | 2.0 | - | 43 | 2.0:1 | 28V | — |
The table reproduces series-level information from the supplied product material. “XX” suffixes and range values may represent options rather than a single configuration. Units and symbols follow the source; verify unusual notations and model-specific limits against the current approved datasheet before design-in.
Need a model-level datasheet?
Browse the 23 typical product PDFs or send the team your frequency plan and interface requirements.
