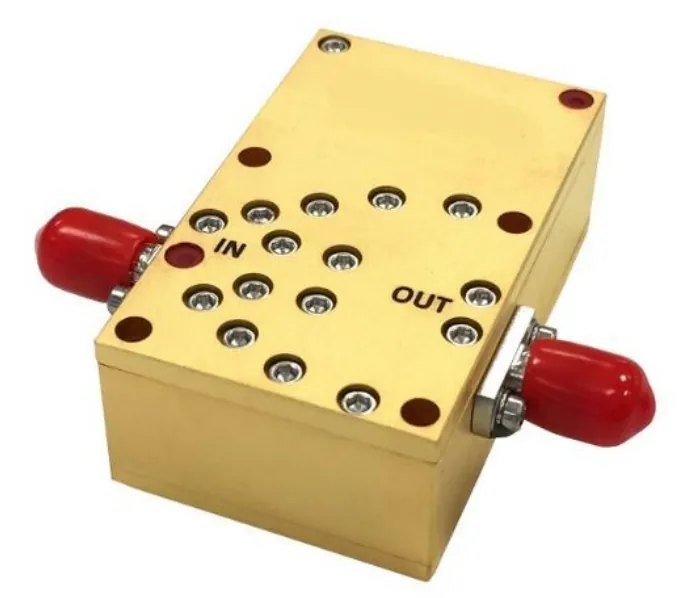

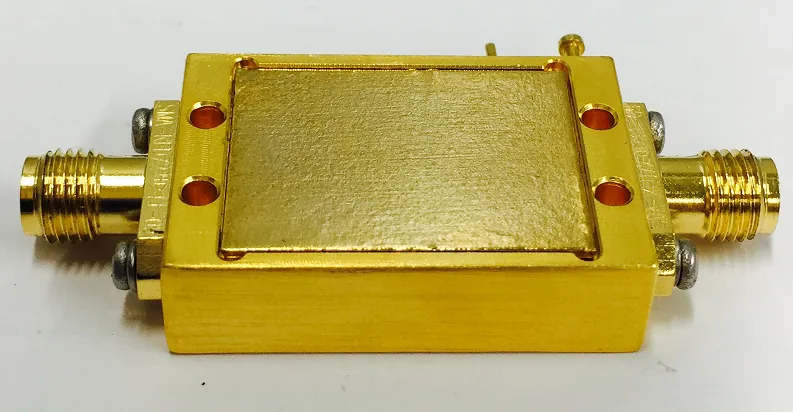

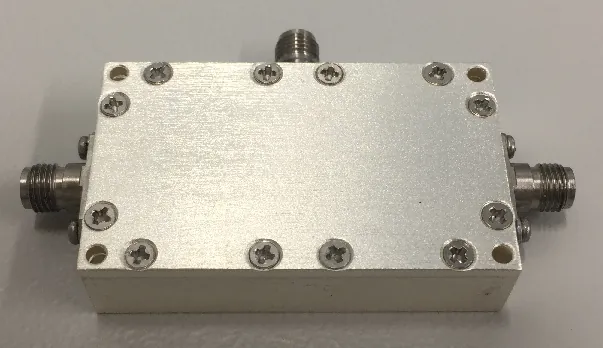

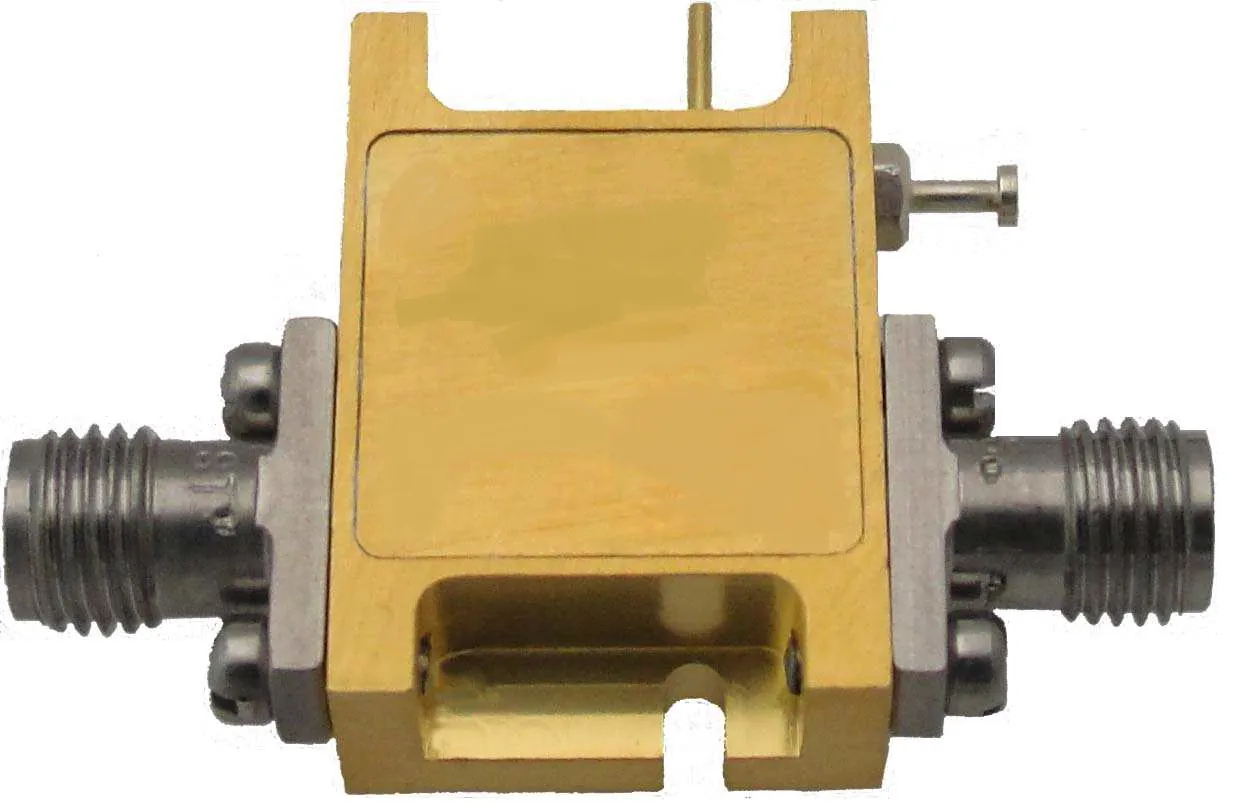

Broadband LNA
This broadband LNA series covers P-band through Q-band. It uses PHEMT MMICs for low-noise, compact designs and microelectronic assembly processes. The supplied product material lists microwave communications, radar, remote control, remote sensing, electronic reconnaissance, electronic countermeasures and radio measurement systems as application areas.
Product introduction
This broadband LNA series covers P-band through Q-band. It uses PHEMT MMICs for low-noise, compact designs and microelectronic assembly processes. The supplied product material lists microwave communications, radar, remote control, remote sensing, electronic reconnaissance, electronic countermeasures and radio measurement systems as application areas.
Series information transcribed from the supplied product handbook. Contact us to confirm the current configuration and revision.
Product features
- Wide operating bandwidth
- Very low noise temperature
- Compact design
- Low power consumption and high linearity
- High quality, reliability and stability
Series specifications
| Model | Frequency Range (GHz) | Gain (dB) | Noise Figure | P1dB (dBm) | VSWR | RF Connector |
|---|---|---|---|---|---|---|
| HQ-LNA-P-0110-XX | 0.1～1 | 30/40 | ≤0.8 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0140-XX | 0.1～40 | 20/30 | 4.5 | ≥+10 | 2.0:1 | 2.92mm-K |
| HQ-LNA-W-0150-XX | 0.1～50 | 20/30 | 5.0 | ≥+10 | 2.0:1 | 2.4mm-K |
| HQ-LNA-LS-0103-XX | 1～3 | 30/40 | ≤0.8 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0108-XX | 1～8 | 30/40 | ≤1.5 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0112-XX | 1～12 | 30/40 | ≤1.8 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0118-XX | 1～18 | 25/40 | ≤3.0 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-SC-0206-XX | 2～6 | 30/40 | ≤1.2 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0218-XX | 2～18 | 30/40 | ≤3.5 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0220-XX | 2～20 | 30/40 | ≤4.0 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-S-025035-XX | 2.5～3.5 | 25/40 | ≤0.7 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-W-0326-XX | 3～26.5 | 25/40 | ≤3.0 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-C-0408-XX | 4～8 | 30/40 | ≤1.2 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-C-0506-XX | 5～6 | 30/40 | ≤0.8 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-CXKu-0618-XX | 6～18 | 30/40 | ≤1.8 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-X-0812-XX | 8～12 | 30/40 | ≤1.2 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-Ku-0812-XX | 12～18 | 30/40 | ≤1.7 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-Ku-0812-XX | 14～18 | 30/40 | ≤1.4 | ≥+10 | 2.0:1 | SMA-K |
| HQ-LNA-Ka-1722-XX | 17～22 | 40～60 | ≤1.7 | ≥+10 | 2.0:1 | SMA/BJ220 |
| HQ-LNA-Ka-18265-XX | 18～26.5 | 30～60 | ≤2.0 | ≥+10 | 2.0:1 | 2.92mm/BJ220 |
| HQ-LNA-Ka-1840-XX | 18～40 | 30/40 | ≤4.0 | ≥+10 | 2.0:1 | 2.92mm |
| Model | Frequency Range (GHz) | Gain (dB) | Noise Figure (dB) | 1 dB Compression Point (dBm) | VSWR | RF Connector |
|---|---|---|---|---|---|---|
| HQ-LNA-Ka-2434-XX | 24～33 | 30/40 | ≤2.0 | ≥+10 | 2.0:1 | 2.92mm/BJ260 |
| HQ-LNA-Ka-26540-XX | 26.5～40 | 30/40 | ≤3.0 | ≥+10 | 2.0:1 | 2.92mm/BJ320 |
| HQ-LNA-Ka-2932-XX | 29～32 | 30～60 | ≤3.0 | ≥+8 | 2.0:1 | 2.92mm/BJ320 |
| HQ-LNA-Q-3545-XX | 35～45 | 30/40 | ≤3.0 | ≥+5 | 2.0:1 | 2.4mm/BJ400 |
| HQ-LNA-Q-4246-XX | 40～46 | 30/40 | ≤3.5 | ≥+5 | 2.0:1 | 2.4mm/BJ400 |
The table reproduces series-level information from the supplied product material. “XX” suffixes and range values may represent options rather than a single configuration. Units and symbols follow the source; verify unusual notations and model-specific limits against the current approved datasheet before design-in.
