Low-Noise Amplifier (LNA)
This low-noise amplifier series covers P-band through Ka-band. Products use HEMT, GaAs FET or MMIC devices in low-noise designs to support a range of functions and performance requirements for microwave systems.
Wakien Tech · Shenzhen, China

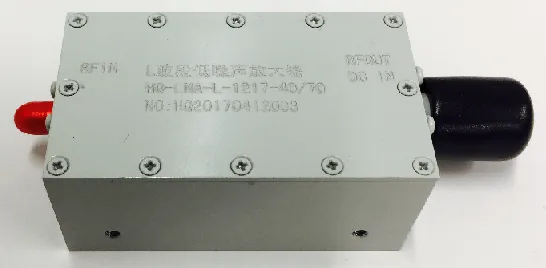

Low-Noise Amplifier (LNA)
This low-noise amplifier series covers P-band through Ka-band. Products use HEMT, GaAs FET or MMIC devices in low-noise designs to support a range of functions and performance requirements for microwave systems.

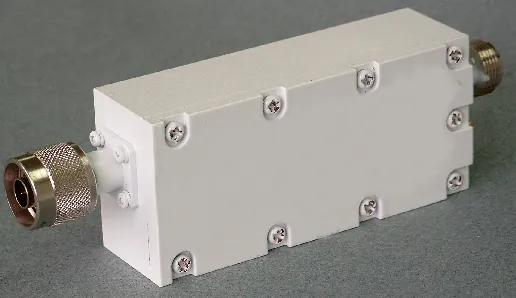

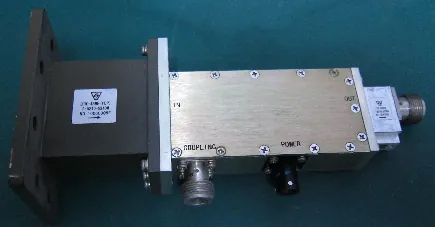

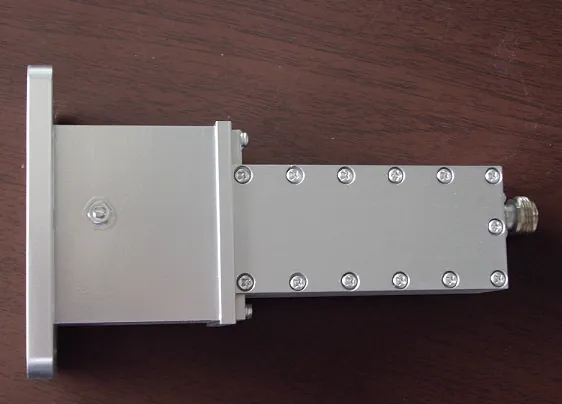

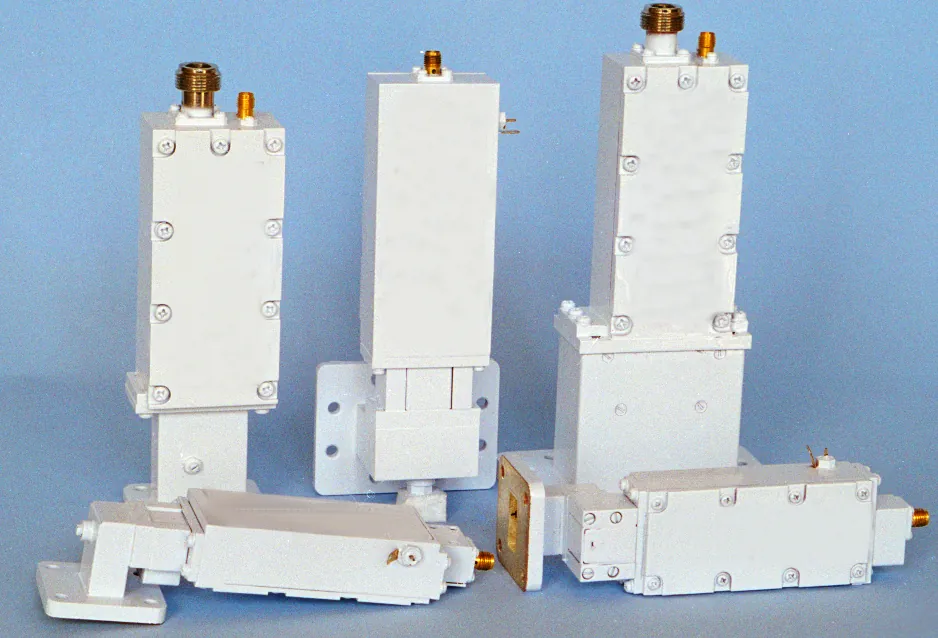

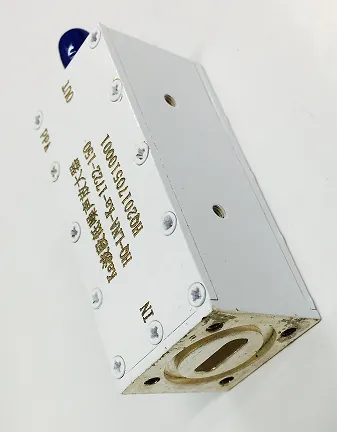

Product introduction
This low-noise amplifier series covers P-band through Ka-band. Products use HEMT, GaAs FET or MMIC devices in low-noise designs to support a range of functions and performance requirements for microwave systems.
Series information transcribed from the supplied product handbook. Contact us to confirm the current configuration and revision.
Product features
- Wide operating bandwidth
- Very low noise temperature
- Low power consumption and high linearity
- High quality, reliability and stability
- Multiple bandwidth options
- Reverse-polarity protection
Series specifications
| Model | Frequency Range (GHz) | Gain (dB) | Noise Figure / Noise Temperature | 1 dB Compression Point (dBm) | VSWR | RF Connector |
|---|---|---|---|---|---|---|
| HQ-LNA-P-001015-XX | 0.01～0.15 | 30～60 | ≤0.7dB / （50°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-P-0104-XX | 0.1～0.4 | 30～60 | ≤0.5dB （35°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-P-0205-XX | 0.2～0.5 | 30～60 | ≤0.5dB （35°K） | ≥10dBm | 1.25:1 | SMA/N |
| HQ-LNA-P-0205-XX | 0.2～0.8 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.3:1 | SMA/N |
| HQ-LNA-P-0407-XX | 0.4～0.7 | 30～60 | ≤0.5dB （35°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-P-0510-XX | 0.5～1.0 | 30～60 | ≤0.5dB （35K） | ≥10dBm | 1.3:1 | SMA/N |
| HQ-LNA-L-1116-XX | 1.1～1.6 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-L-1517-XX | 1.5～1.7 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-S-1722-XX | 1.7～2.2 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-S-2023-XX | 2.0～2.3 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-S-2224-XX | 2.2～2.4 | 30～60 | ≤0.55dB （40K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-S-2425-XX | 2.4～2.5 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.4:1 | SMA/N |
| HQ-LNA-C-3442-XX | 3.4～4.2 | 30～60 | ≤0.7dB （50°K） | ≥10dBm | 1.4:1 | SMA/BJ48 |
| HQ-LNA-C-3742-XX | 3.4～4.8 | 30～60 | ≤0.7dB（ 50°K） | ≥10dBm | 1.4:1 | SMA/BJ48 |
| HQ-LNA-C3642-XX | 3.6～4.2 | 30～60 | ≤0.55dB （40°K） | ≥10dBm | 1.4:1 | SMA/BJ48 |
| HQ-LNA-C-3742-XX | 3.7～4.2 | 30～60 | ≤0.55dB（ 40°K） | ≥10dBm | 1.4:1 | SMA/BJ48 |
| HQ-LNA-C-3748-XX | 3.7～4.8 | 30～60 | ≤0.7dB (50°K) | ≥10dBm | 1.4:1 | SMA/BJ48 |
| HQ-LNA-C-4450-XX | 4.4～5.0 | 30～60 | ≤0.7dB (50°K) | ≥10dBm | 1.4:1 | SMA/BJ48 |
| HQ-LNA-C-4959-XX | 4.9～5.9 | 30～60 | ≤0.75dB (55°K) | ≥10dBm | 1.4:1 | SMA/BJ58 |
| Model | Frequency Range (GHz) | Gain (dB) | Noise Figure / Noise Temperature | 1 dB Compression Point (dBm) | VSWR | RF Connector |
|---|---|---|---|---|---|---|
| HQ-LNA-C-5359-XX | 5.3～5.9 | 30～60 | ≤0.70dB (50°K) | ≥10dBm | 1.4:1 | SMA/BJ58 |
| HQ-LNA-C-5964-XX | 5.9～6.4 | 30～60 | ≤0.70dB (50°K) | ≥10dBm | 1.4:1 | SMA/BJ58 |
| HQ-LNA-X-7077-XX | 7.0～7.7 | 30～60 | ≤0.75dB （55°K） | ≥10dBm | 1.4:1 | SMA/BJ84 |
| HQ-LNA-X-7080-XX | 7.0～8.0 | 30～60 | ≤0.94dB （70°K） | ≥10dBm | 1.25:1 | SMA/BJ84 |
| HQ-LNA-X-725775-XX | 7.25～7.75 | 30～60 | ≤0.82dB （60°K） | ≥10dBm | 1.25:1 | SMA/BJ84 |
| HQ-LNA-X-8090-XX | 8.0～9.0 | 30～60 | ≤0.94dB （70°K） | ≥10dBm | 1.25:1 | SMA/BJ84 |
| HQ-LNA-X-7090-XX | 7.0～9.0 | 30～60 | ≤0.94dB （70°K） | ≥10dBm | 1.25:1 | SMA/BJ84 |
| HQ-LNA-X-9010-XX | 9.0～10.0 | 30～60 | ≤0.82dB （ 60°K） | ≥10dBm | 1.4:1 | SMA/BJ100 |
| HQ-LNA-X-1011-XX | 10.0～11.0 | 30～60 | ≤1.06dB （ 80°K） | ≥10dBm | 1.25:1 | SMA/BJ100 |
| HQ-LNA-X-109117-XX | 10.9～11.7 | 30～60 | ≤1.06dB （80°K） | ≥10dBm | 1.25:1 | SMA/BJ100 |
| HQ-LNA-Ku-10751225-XX | 10.75～12.25 | 30～60 | ≤1.06dB （80°K） | ≥10dBm | 1.25:1 | SMA/BJ100 |
| HQ-LNA-Ku-12251275-XX | 12.25～12.75 | 30～60 | ≤1.06dB （80°K） | ≥10dBm | 1.25:1 | SMA/BJ120 |
| HQ-LNA-Ku-1091275-XX | 10.9～12.75 | 30～60 | ≤1.06dB （80°K） | ≥10dBm | 1.25:1 | SMA/BJ120 |
| HQ-LNA-Ku-1314-XX | 13～14 GHz | 30～60 | ≤1.5dB （120K） | ≥10dBm | 1.5:1 | SMA/BJ120 |
| HQ-LNA-Ku-1415-XX | 14～15 GHz | 30～60 | ≤1.5dB （120°K） | ≥10dBm | 1.5:1 | SMA/BJ140 |
| HQ-LNA-Ku-1517-XX | 15～17 GHz | 30～60 | ≤2.0dB （170°K） | ≥10dBm | 1.5:1 | SMA/BJ140 |
| HQ-LNA-Ka-1721-XX | 17.7～21.2 GHz | 30～60 | ≤1.8dB （150°K） | ≥10dBm | 2.0:1 | SMA/BJ220 |
| HQ-LNA-Ka-1921-XX | 19.2～21.2 GHz | 30～60 | ≤1.4dB （110°K） | ≥10dBm | 2.0:1 | SMA/BJ220 |
The table reproduces series-level information from the supplied product material. “XX” suffixes and range values may represent options rather than a single configuration. Units and symbols follow the source; verify unusual notations and model-specific limits against the current approved datasheet before design-in.
