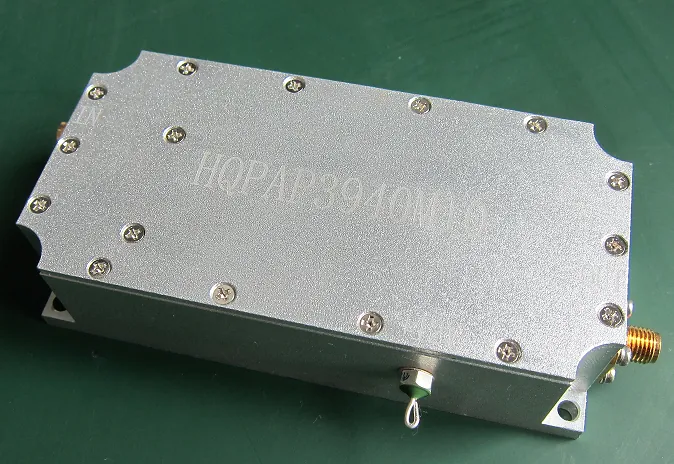

Solid State Power Amplifier (SSPA)
The solid-state power amplifier (SSPA) amplifies RF signals for transmit power in communications, radar, navigation and tracking/control, and electronic countermeasure systems. This series covers P-band through Ku-band. The company describes experience in high-linearity, high-efficiency and high-power amplifier design, supported by thermal design and a quality management system for stable operation.
Wakien Tech · Shenzhen, China
Solid State Power Amplifier (SSPA)
The solid-state power amplifier (SSPA) amplifies RF signals for transmit power in communications, radar, navigation and tracking/control, and electronic countermeasure systems. This series covers P-band through Ku-band. The company describes experience in high-linearity, high-efficiency and high-power amplifier design, supported by thermal design and a quality management system for stable operation.

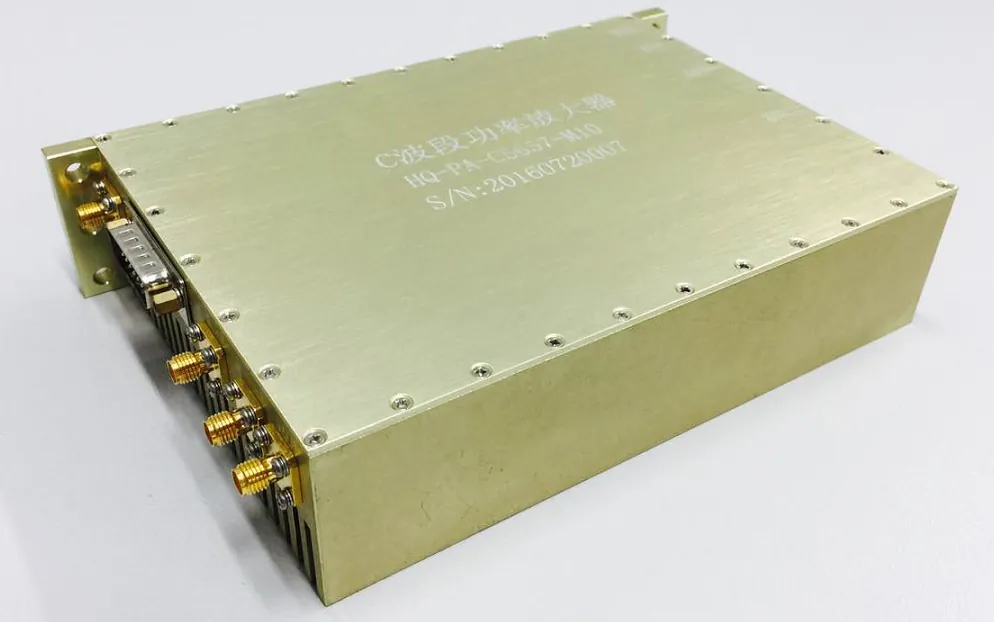

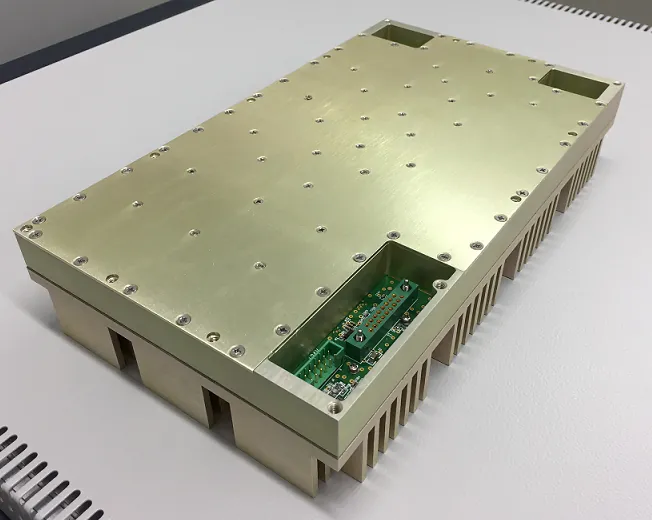

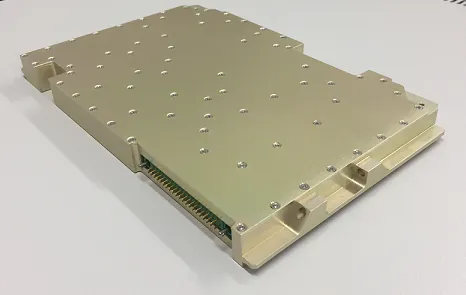

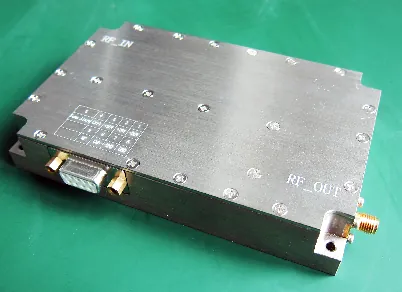

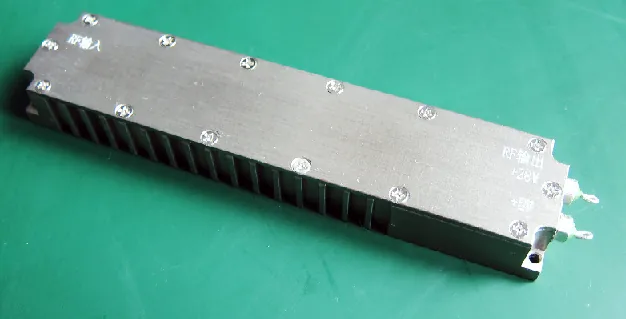

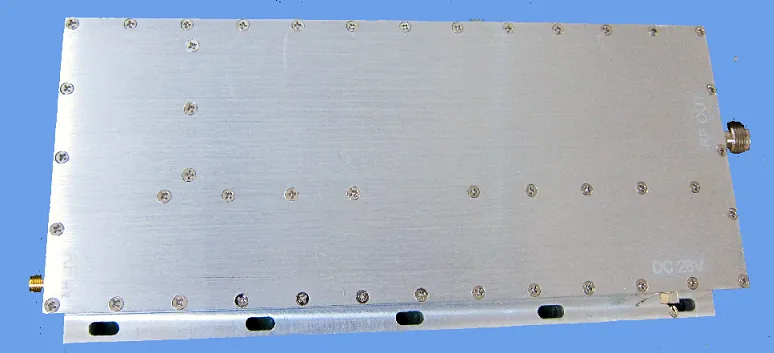

Product introduction
The solid-state power amplifier (SSPA) amplifies RF signals for transmit power in communications, radar, navigation and tracking/control, and electronic countermeasure systems. This series covers P-band through Ku-band. The company describes experience in high-linearity, high-efficiency and high-power amplifier design, supported by thermal design and a quality management system for stable operation.
Series information transcribed from the supplied product handbook. Contact us to confirm the current configuration and revision.
Product features
- Wide frequency coverage
- High-power, high-linearity output
- High efficiency and reliability
- Wide operating temperature range
- Overpower and reflected-power protection
- Forward and reverse power detection
- Temperature protection
- Voltage alarm and protection
- Current alarm and protection
- Multiple monitoring modes
- Modular design for easier installation and maintenance
Series specifications
| Model | Frequency Range (as listed) | Gain (dB) | Intermodulation Rejection (dBc) | 1 dB Compression Point (dBm) | VSWR | RF Connector |
|---|---|---|---|---|---|---|
| HQ-PA-P003033-XX | 3～33MHz | 30～60 | ≥25dBc | 37～57dBm | 1.4:1 | SMA-F/N-F |
| HQ-PA-P030088-XX | 30～88MHz | 30～60 | ≥25dBc | 37～57dBm | 1.4:1 | SMA-F/N-F |
| HQ-PA-P030512-XX | 30～512MHz | 30～60 | ≥25dBc | 37～57dBm | 1.4:1 | SMA-F/N-F |
| HQ-PA-P108225-XX | 108～225MHz | 30～60 | ≥25dBc | 37～57dBm | 1.4:1 | SMA-F/N-F |
| HQ-PA-P225512-XX | 225～512MHz | 30～60 | ≥25dBc | 37～57dBm | 1.4:1 | SMA-F/N-F |
| HQ-PA-P0510-XX | 500～1000MHz | 30～60 | ≥25dBc | 37～57dBm | 1.4:1 | SMA-F/N-F |

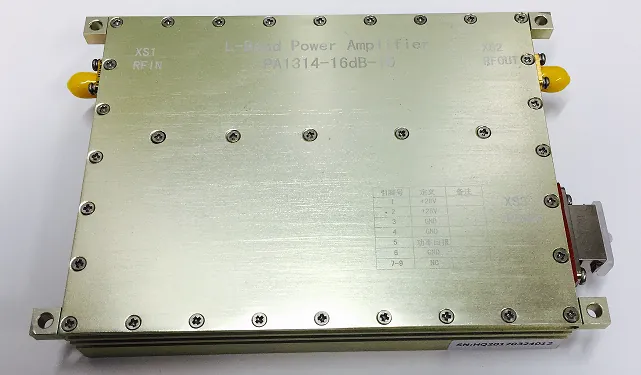

| HQ-PA-L1214-XX | 1.2GHz～1.4GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F |
| HQ-PA-L1517-XX | 1.5GHz～1.7GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F |
| HQ-PA-S2023-XX | 2.0GHz～2.3GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-S2327-XX | 2.3GHz～2.7GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-S2527-XX | 2.5GHz～2.7GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C3338-XX | 3.3GHz～3.8GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C3540-XX | 3.5GHz～4.0GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C3742-XX | 3.7GHz～4.2GHz | 30～60 | ≥25dBc | 37～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C4045-XX | 4.0GHz～4.5GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C4450-XX | 4.4GHz～5.0GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C4959-XX | 4.9GHz～5.9GHz | 30～60 | ≥25dBc | 30～47dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C5053-XX | 5.0GHz～5.3GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C5359-XX | 5.3GHz～5.9GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-C5964-XX | 5.9GHz～6.4GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-X6472-XX | 6.4GHz～7.2GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| Model | Frequency Range (as listed) | Gain (dB) | Intermodulation Rejection (dBc) | 1 dB Compression Point (dBm) | VSWR | RF Connector |
|---|---|---|---|---|---|---|
| HQ-PA-X7179-XX | 7.1GHz～7.9GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-X7785-XX | 7.7GHz～8.5GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-X8996-XX | 8.9GHz～9.6GHz | 30～60 | ≥25dBc | 30～53dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-X1011-XX | 9.5GHz～10.5GHz | 30～60 | ≥25dBc | 30～50dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-Ku1112-XX | 10.7GHz～11.7GHz | 30～60 | ≥25dBc | 30～50dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-Ku1213-XX | 11.7GHz～12.7GHz | 30～60 | ≥25dBc | 30～47dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-Ku1313-XX | 12.7GHz～13.2GHz | 30～60 | ≥25dBc | 30～50dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-Ku1314-XX | 13.75GHz～14.5GHz | 30～60 | ≥25dBc | 30～50dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-Ku1414-XX | 14GHz～14.5GHz | 30～60 | ≥25dBc | 30～50dBm | 1.25:1 | SMA-F/N-F/BJ |
| HQ-PA-Ku1415-XX | 13.75GHz～15.3GHz | 30～60 | ≥25dBc | 30～46dBm | 1.25:1 | SMA-F/N-F/BJ |
The table reproduces series-level information from the supplied product material. “XX” suffixes and range values may represent options rather than a single configuration. Units and symbols follow the source; verify unusual notations and model-specific limits against the current approved datasheet before design-in.
